MS247SA

MS247SA

Product Type FHD Endoscopy Display
Display Size 24 Inch
Resolution 1920*1200

Describtion

MS 247SA is a 24-inch Full HD medical display designed for endoscopy, With its excellent image quality and advanced technical characteristics, it provides a strong support for clinical diagnosis. The display uses Full HD resolution (1920 x 1080), can show extremely clear, delicate visual effects, Ensure that doctors are able to capture every key detail during endoscopy, thus laying a solid foundation for accurate diagnosis. Its excellent color accuracy and wide color gamut coverage ability, can truly restore the natural color of tissues and organs, This is very important for pathological analysis and judgment in endoscopy. To adapt to different medical environments, the MS 247SA is equipped with an anti-glare screen, Even in strong light or complex light can provide a clear, non-interference display effect, effectively reduce the doctor’s visual fatigue, improve work efficiency. In addition, the display also supports a variety of input options, can be flexibly connected to a variety of endoscopic equipment and other medical instruments, Ensure seamless and stable operation in different clinical scenarios. MS 247SA provides reliable and consistent performance for both routine examinations and complex procedures. Its quality certification and humanized design in line with medical standards make it an ideal choice in the field of endoscopy. For medical workers to provide an efficient and accurate diagnostic tools to help improve the overall level of medical services.

Product parameters

Item Specific
Products Name FHD Endoscopy Monitor
Display Size 24 Inch
Resolution 1920*1200

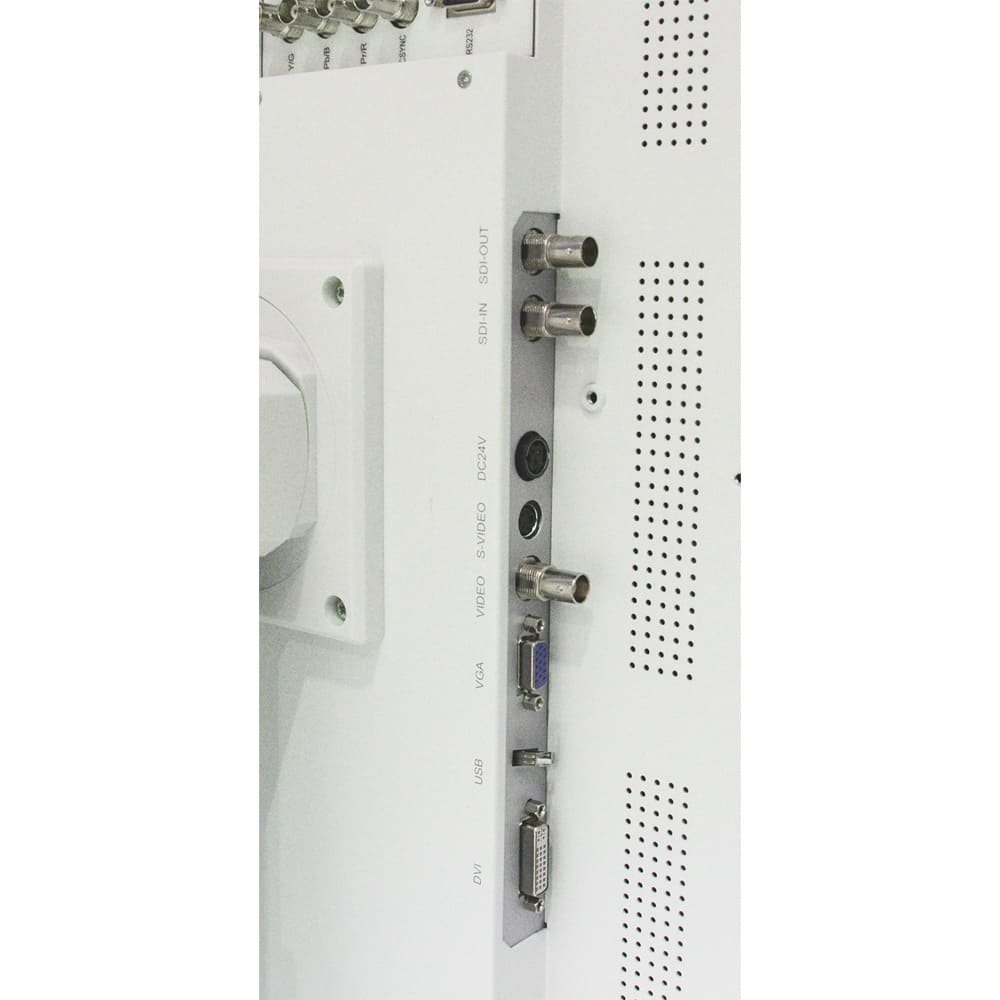

Input Port VGA/DVI/S-VIDEO /BNC(VIDEO) /BNC*3(RGB/YPbPr) /BNC(CSYNC)/BNC(SDI)
Output Port BNC(VIDEO)/S-VIDEO/BNC(CSYNC) /BNC*3(RGB/YPbPr)/BNC(SDI)
Max Brightness 300 cd/m²
Default Brightness 200 cd/m²
Contrast Ratio 1000:1(TYP)
View Angle 178° Typ

Product Outstanding Features

Benchmark Comparison

Our MS247SA  endoscopy monitor offers image quality comparable to many world-leading surgical display brands. It is ideally suited for various complex surgical environments.

True Color Gamut

Supporting BT.2020 compliance enables Reshin’s endoscopy display to accurately recognize colors from analog FHD video, going beyond the REC709 standard used in Reshin’s HD monitor. This allows the FHD display to showcase dynamic images captured by BT.2020 standard cameras perfectly.

Wide Compatibility

Our endoscopic surgical monitors have been seamlessly integrated with various brands of surgical systems in over 100,000 hospitals across more than 100 countries worldwide.
